Custom 66 Series Air Cleaner Assemblies

Click here for product info and to order online
These custom air cleaner assemblies from K&N are designed for use with any engine that uses a round element air cleaner housing. They incorporate our famous K&N Air Filters and provide serious air flow. Available in 4 different designs, the perfect assembly is sure to be found here. Each complete assembly comes with base, element, top plate and stud.

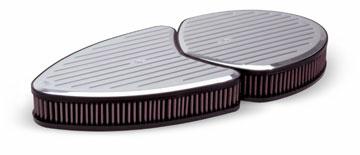

Dual Quad Assembly
Dual Quad Assembly
Dual Quad Assembly (Arrow & Oval) # 66-5080
Dual Quad Arrow Assembly # 66-5080F (left unit)
Dual Quad Oval Assembly # 66-5080R (right unit)

The Dual Quad Assembly is designed to fit 4 barrel carburetors with a 5-1/8" neck flange. The minimum center-to-center spacing required is 7-13/16". The filter is 2 1/2" tall and entire assembly height is 4 1/8". Approximate length and width of the Arrow Assembly is 12"L x 9"W. The Oval Assembly is approximately 10" X 10". Total length depends on the distance between carburetors. A 8" center-to-center carburetor distance will have a total length of 20 1/2".

Flamed Design
Flamed Design Large Oval:
15" x 8-1/4" x 3"h #66-1470
15" x 8-1/4" x 5"h #66-1460
Small Oval:
11-7/8" x 8-3/8" x 3"h #66-1530
11-7/8" x 8-3/8" x 5"h #66-1520

Electric Design
Electric Design Large Oval:
15" x 8-1/4" x 3"h #66-1510
15" x 8-1/4" x 5"h #66-1500
Small Oval:
11-7/8" x 8-3/8" x 3"h #66-1570
11-7/8" x 8-3/8" x 5"h #66-1560
Scalloped Design
Scalloped Design Large Oval:
15" x 8-1/4" x 3"h #66-1490
15" x 8-1/4 x 5"h #66-1480
Small Oval:
11-7/8" x 8-3/8" x 3"h #66-1550
11-7/8" x 8-3/8" x 5"h #66-1540
Replacement Elements:
For Large Oval Assemblies 2" element height E-3515
For Large Oval Assemblies 4" element height E-3514

For Small Oval Assemblies 2" element height E-3505
For Small Oval Assemblies 4" element height E-3504
